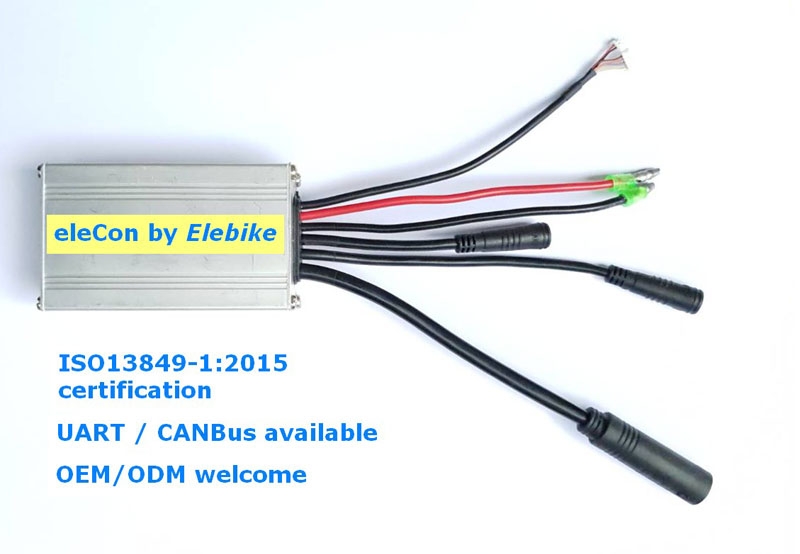

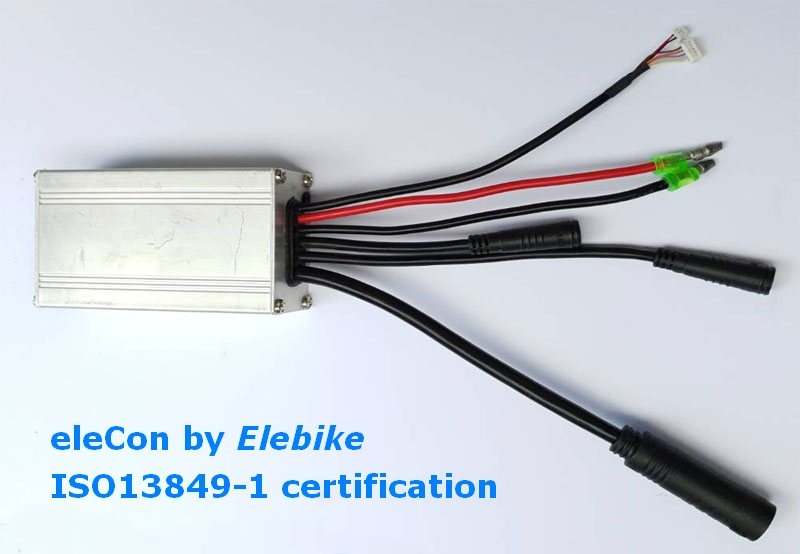

eleCon

Controller for E-bike

apply for EN ISO 13849-1

＊Input DC Voltage: 28V ~ 42V
＊Max. Continue Output Current: 12A
＊PCB Power Consumption: 50mA
＊Temp. Rating: -20~85℃
＊Communication with Display: UART, 9600 baud rate, CANBUS
＊Pedal Sensor:
　 Pedal Cadence Sensor
　 Torque Sensor (0~5V)
＊Motor Type: 120 degrees with 3 Phases Hall Sensor
＊Communication with Battery(Optional):
　 UART
　 I2C
　 SPI
　 CAN Bus
＊Configurable Functions:
　 Max. Power for Mode 1 ~ Mode 8
　 Startup Power
　 Speed Limit
　 Power Generation from Direct Drive Motor
　 Motor Temperature Sensing
