YF02

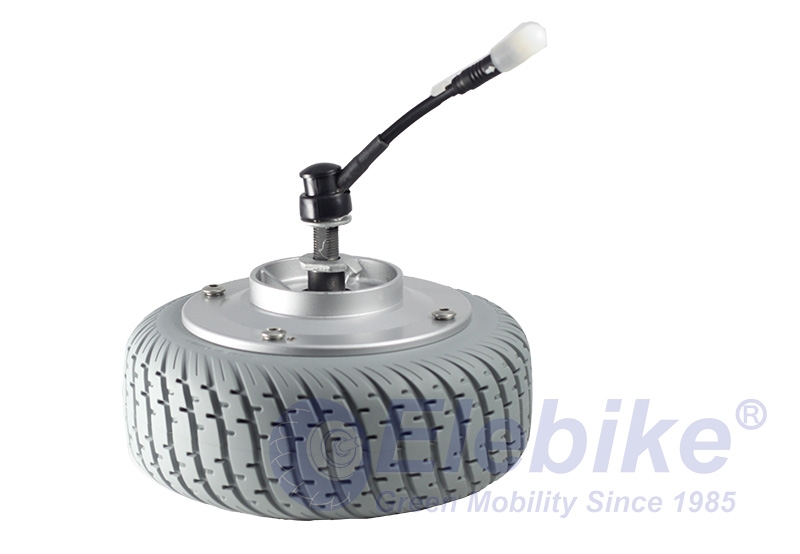

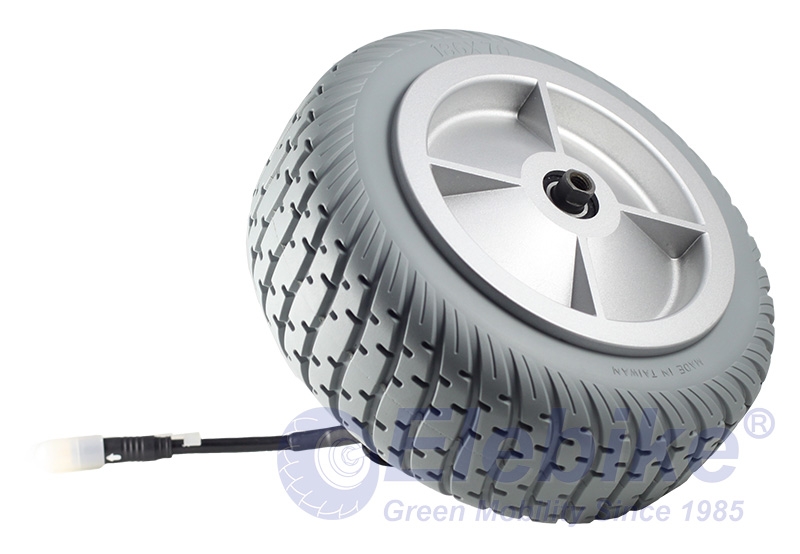

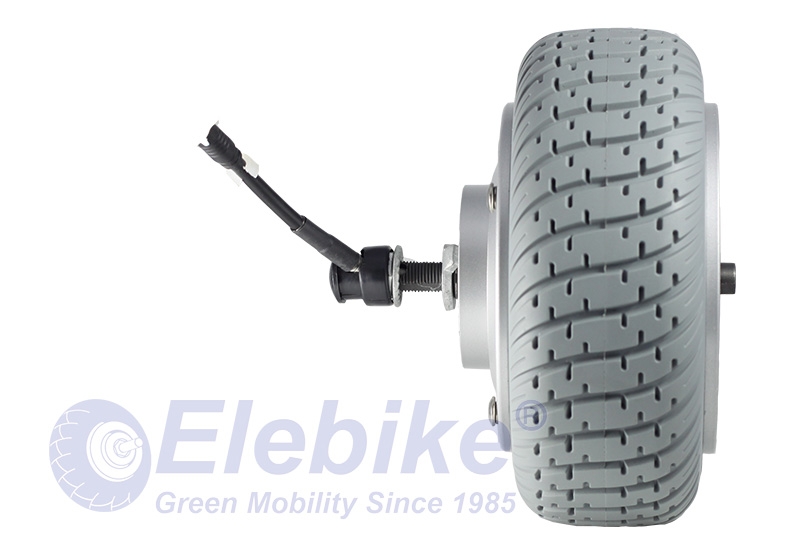

The 8 inch BLDC scooter hub motor, YF02, with its wide tire, provides sufficient grip. Band brake can be applied on the side to slow down or stop the motor. With its small size, light weight, high efficiency, it runs smoothly and quietly. The motor is suitable for e-bike, mobility, scooter, and trolley.
SPECIFICATIONS
| Model | YF02 |
|---|---|
| Brushed / Brushless | Brushless |
| Rated Voltage (V) | 24V / 36V |
| Rated Power (W) | 200W - 250W |
| Wheel Size (inch) | 8" |
| Reduction Ratio | 1:4.3 |
| Rated Speed (km/h) | (8 km / hr), customized |
| Rated Efficiency (%) | > 78% |
| Weight | 3.3 KG |
| Open Size (mm) | 100 mm |
| Cable Location | Shaft center right |
| Hall Sensor | Optional |
| Integrate speed sensor | Optional |
| Surface | Silver |
| Brake Type | Band Brake |
