SA176

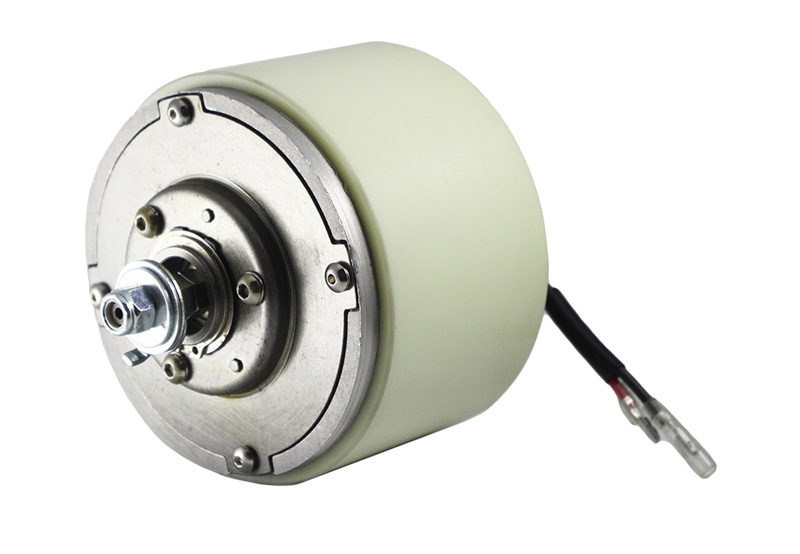

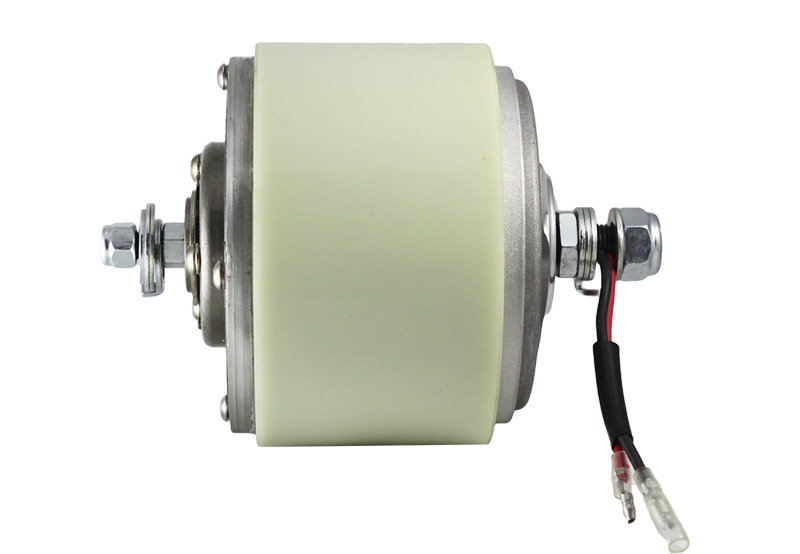

The trolling hub motor, SA176, with its tiny size, 6", has a high reduction ratio, 1:18. With its small size, light weight, high efficiency, it runs smoothly and quietly. The motor is suitable for e-bike, mobility, scooter, and trolley.
SPECIFICATIONS
| Model | SA176 |
|---|---|
| Brushed / Brushless | Brushed |
| Rated Voltage (V) | 24V / 36V |
| Rated Power (W) | 200W - 250W |
| Wheel Size (inch) | 6" |
| Reduction Ratio | around 1:18 |
| Rated Speed (km/h) | (6 km / hr), customized |
| Weight | 4.3 KG |
| Shaft Size (mm) | M14 x 10 mm, M10 |
| Cable Location | Shaft side |
| Surface | Silver |
| Brake Type | no Brake |
