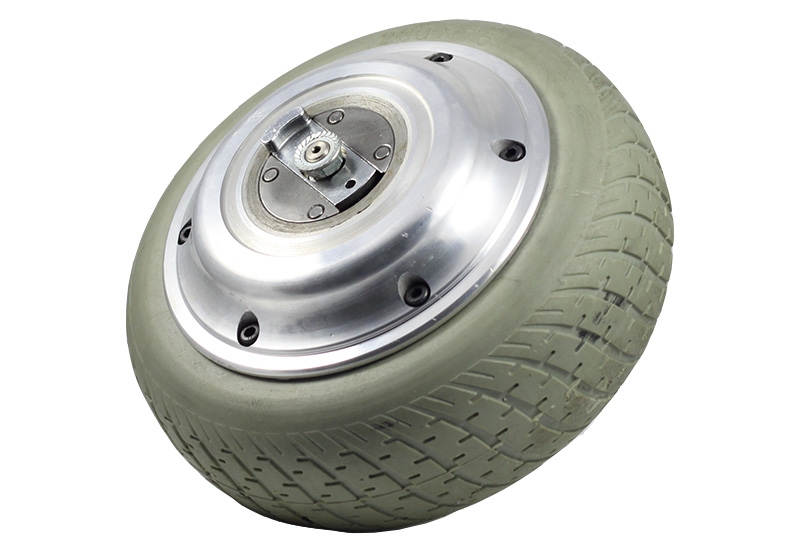

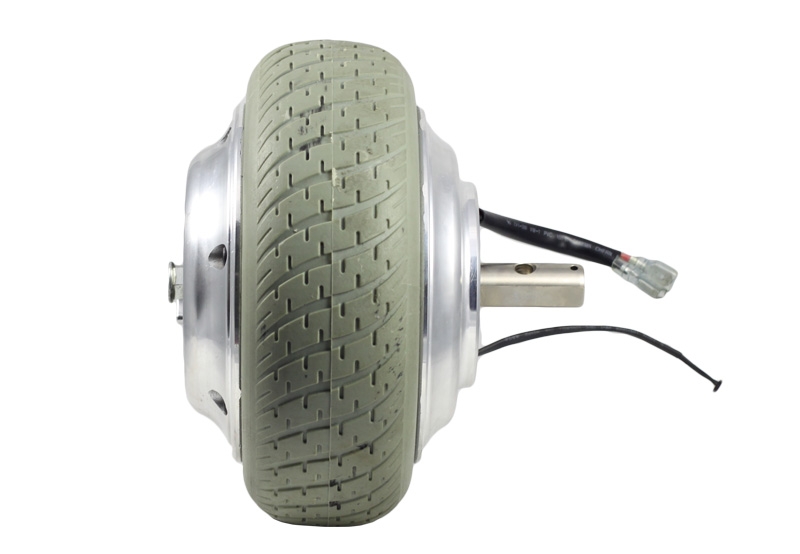

SA175A
The mobility hub motor, SA175A, is special designed for slow vehicles. With its built-in electromagnetic brake (e-brake) system and high gear ratio, it is easy to drive on any terrain. With small size, light weight, high efficiency, it runs smoothly and quietly. The motor is suitable for e-bike, mobility, scooter, and trolley.
SPECIFICATIONS
| Model | SA175A |
|---|---|
| Brushed / Brushless | Brushed |
| Rated Voltage (V) | 24V / 36V |
| Rated Power (W) | 200W - 250W |
| Wheel Size (inch) | 8 - 10" |
| Reduction Ratio | around 1:20 |
| Rated Speed (km/h) | (8 km / hr), customized |
| Weight | 5.3KG (8"), 6.2KG (10") |
| Shaft Size (mm) | 19 x 16 mm |
| Cable Location | Shaft side |
| Surface | Silver |
| Brake Type | Park Brake |
