FT-2B

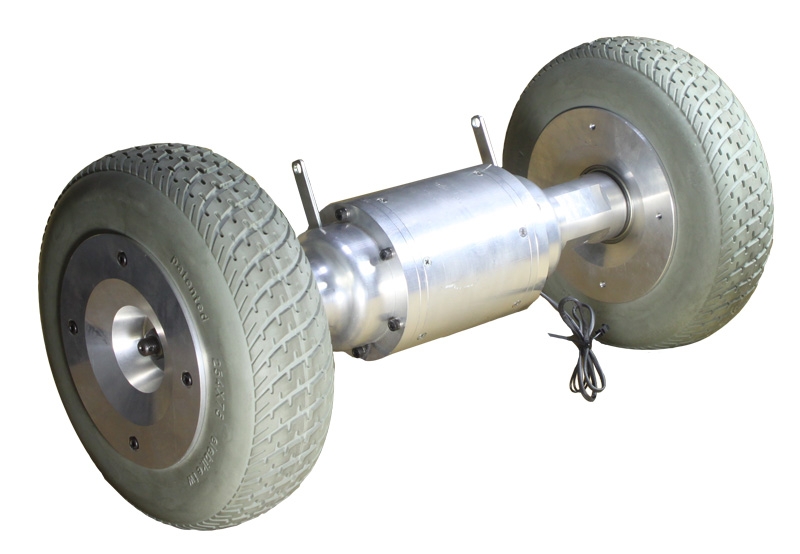

Elebike Differential motor, FT-2B, is a complete motor system. With the only one motor, splits the motor torque to 2 wheels, allowing each output to spin at a different speed. With the special design, the vehicle with the system turns smoothly and easily. The motor is suitable for mobility, and trolley.
SPECIFICATIONS
| Model | FT-2B |
|---|---|
| Brushed / Brushless | Brushless |
| Rated Voltage (V) | 24V - 48V |
| Rated Power (W) | 180W - 350W |
| Wheel Size (inch) | 8", 10" |
| Reduction Ratio | - |
| Rated Speed (km/h) | 10 km / hr |
| Rated Efficiency (%) | - |
| Weight | 15.4 KG |
| Open Size (mm) | - |
| Cable Location | - |
| Hall Sensor | Optional |
| Integrate speed sensor | Optional |
| Surface | Silver |
| Brake Type | E-brake |
| (Rear Derailleur) | - |
