BL23 brushless motor
Dual mode design(Manual/Power) easy switching by knob. Quick assembly for most wheelchair frames!
適用於輪椅車的無刷馬達
內建電磁剎車
Brushless motor with PG brushless controller!!

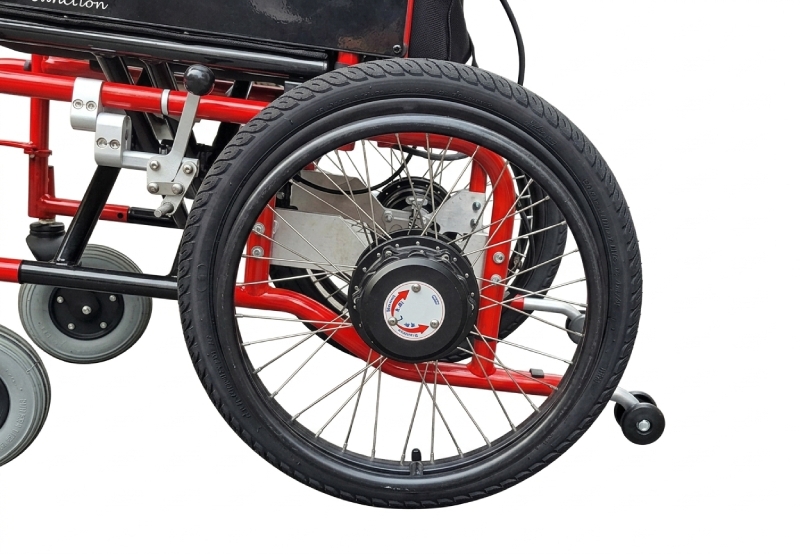

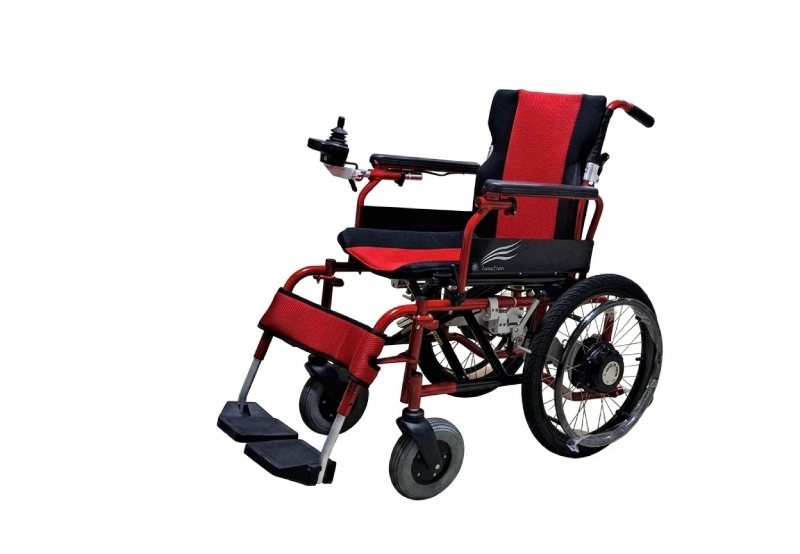

Turning a regular wheelchair into an electric / powered one
Components:

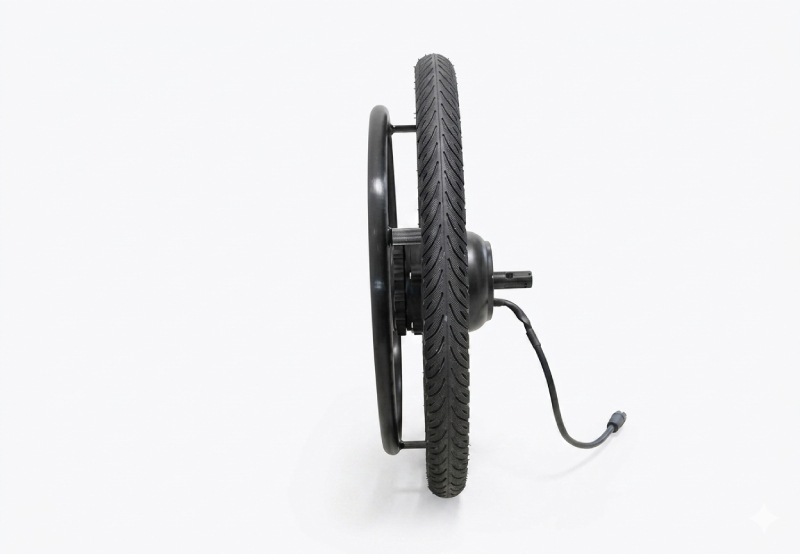

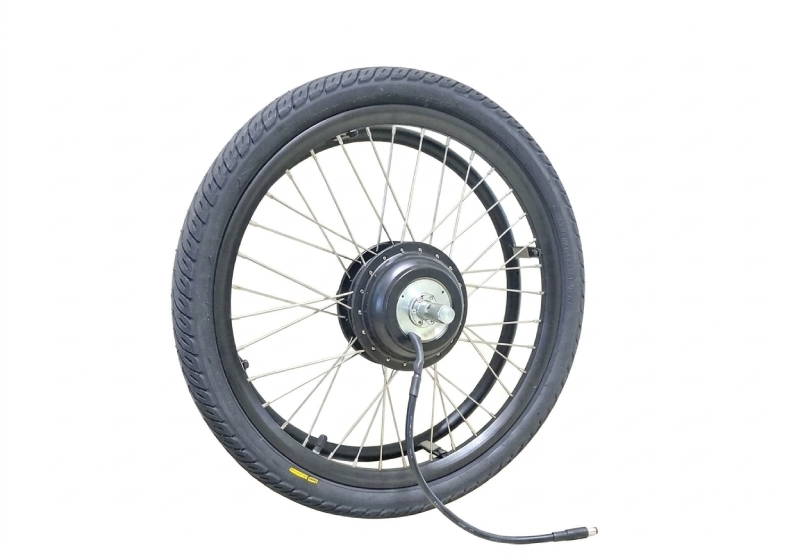

Brushless Hub Motor x 2 pcs (shaft size: 19 x 16 mm)
Built-in Park-Brake (E-brake),

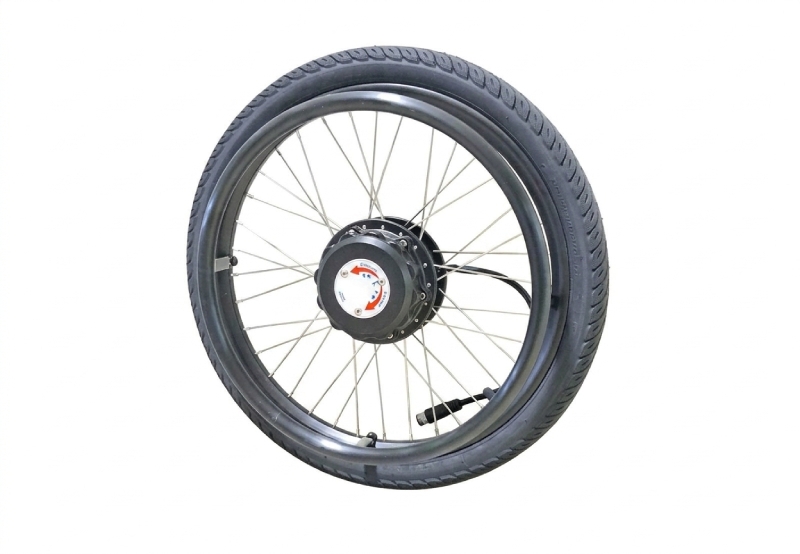

New Set / Release Knob for Power or Manual mode switching
24" (or 22") x 1-3/8 , 20" x 1.75 Spoke Rim + Tire x 2 pcs
Aluminum alloy Hand Rim
Controller sets (CW PG BLDC nVR2)
Fixtures/parts for assembling
適用於輪椅車的無刷馬達
內建電磁剎車
Brushless motor with PG brushless controller!!
Turning a regular wheelchair into an electric / powered one
Components:
Brushless Hub Motor x 2 pcs (shaft size: 19 x 16 mm)
Built-in Park-Brake (E-brake),
New Set / Release Knob for Power or Manual mode switching
24" (or 22") x 1-3/8 , 20" x 1.75 Spoke Rim + Tire x 2 pcs
Aluminum alloy Hand Rim
Controller sets (CW PG BLDC nVR2)
Fixtures/parts for assembling
SPECIFICATIONS
Brushed / Brushless | Brushless |
---|---|
Rated Voltage (V) | 24V |
Rated Power (W) | 200W x 2 |
Wheel Size (inch) | 20-28 inch |
Max Speed (km/h) | 6-15 km/hr |
Weight (Kg) | 5.3 Kg / each wheel |
Cable Location | Shaft side |
Spoke Specification | 14g |
Surface | Black |
Brake Type | Park Brake (E-brake) |
