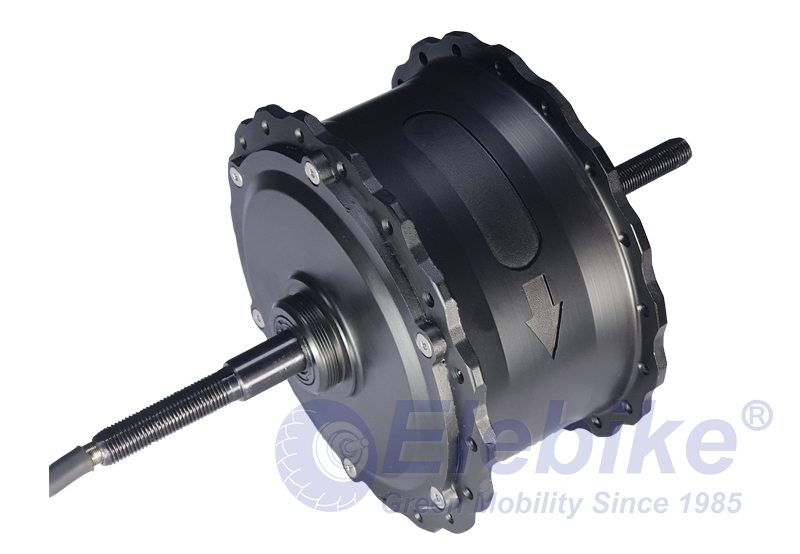

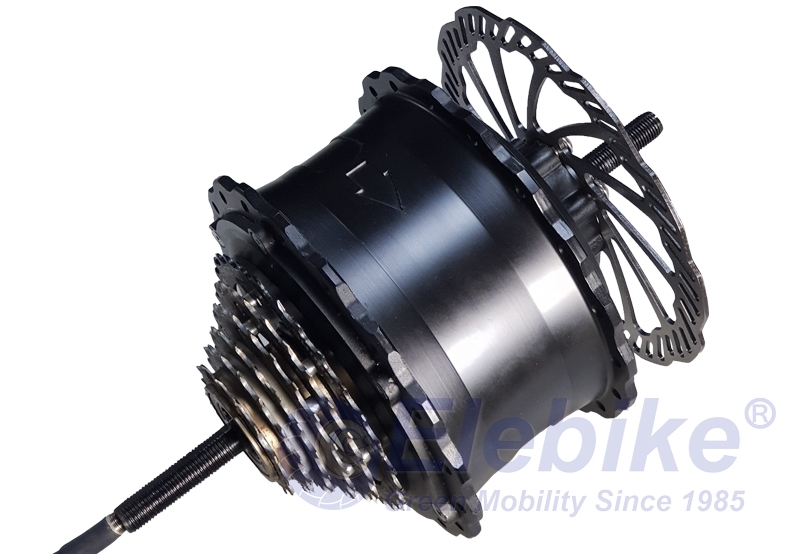

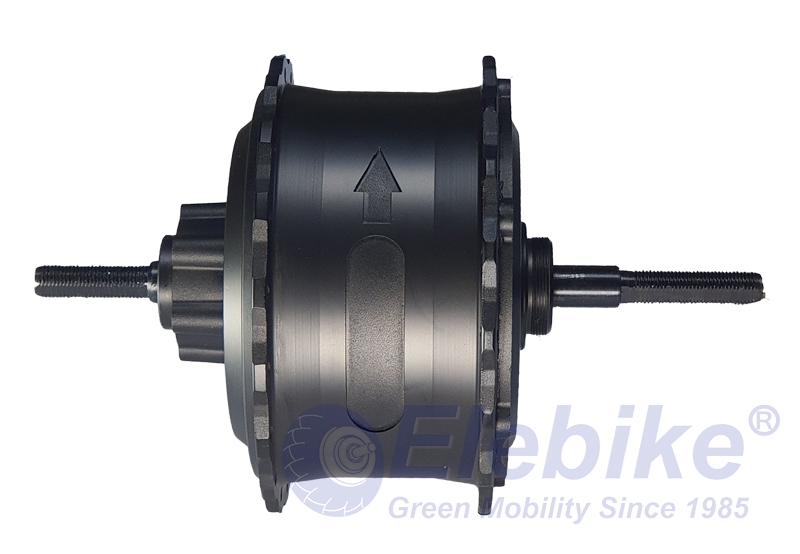

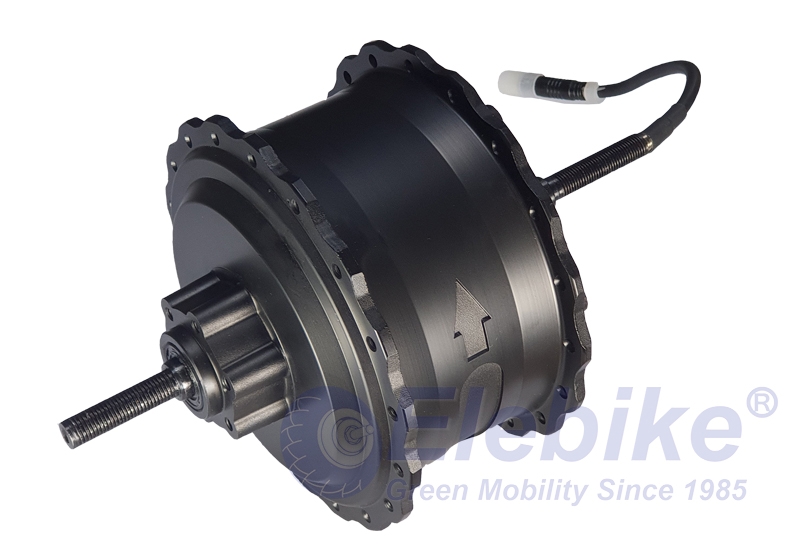

ATSB-170-R6
500W Hub Motor for Fat Tire Bike (Snow Bike)
Rear Wheel installation
Spec.
| Model | ATSB-170-R6 (ATSB-190) |
|---|---|
| Brushed / Brushless | Brushless |
| Rated Voltage (V) | 36V / 48V |
| Rated Power (W) | 250W - 750W |
| Wheel Size (inch) | 20" - 28" |
| Reduction Ratio | 1:5 |
| Rated Speed (km/h) | (30 km / hr), customized |
| Rated Efficiency (%) | > 78% |
| Weight | 4.5 KG |
| Open Size (mm) | 170 mm (190 mm) |
| Cable Location | Shaft center right |
| Hall Sensor | Optional |
| Integrate speed sensor | Optional |
| Surface | Silver, Black |
| Brake Type | Disk Brake |
| (Rear Derailleur) | 6 speed |
