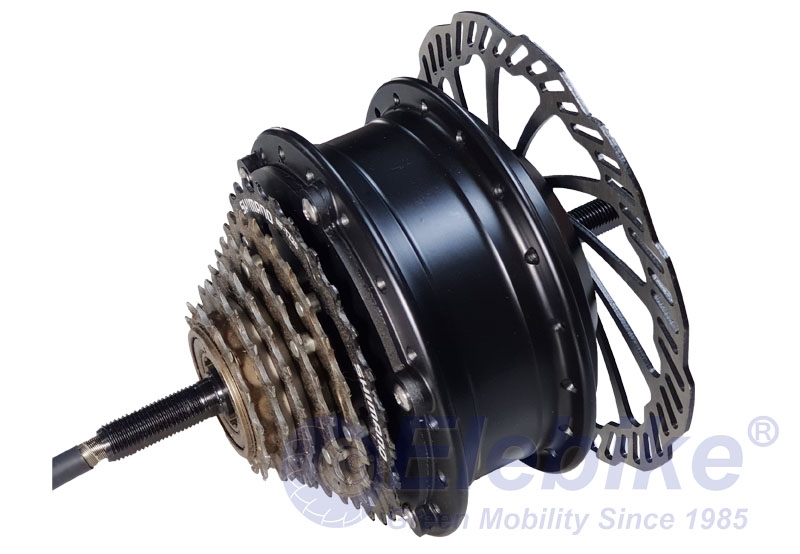

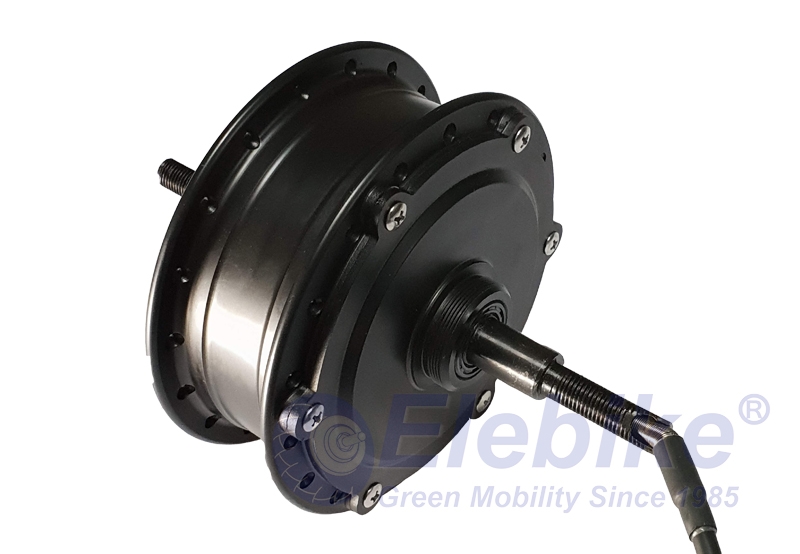

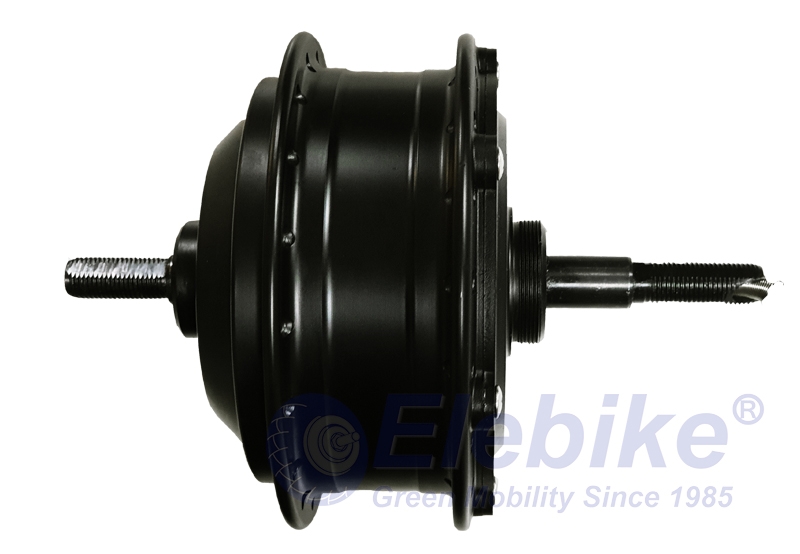

ATEB-R7
250W Automatic Coil Winding Hub Motor for ebike
Rear Wheel installation
Spec.
| Model | ATEB-R7 |
|---|---|
| Brushed / Brushless | Brushless |
| Rated Voltage (V) | 24V / 36V |
| Rated Power (W) | 200W - 250W |
| Wheel Size (inch) | 20" - 28" |
| Reduction Ratio | 1:4.3 |
| Rated Speed (km/h) | (25 km / hr), customized |
| Rated Efficiency (%) | > 78% |
| Weight | 2.8 KG |
| Open Size (mm) | 135 mm |
| Cable Location | Shaft center right |
| Hall Sensor | Optional |
| Integrate speed sensor | Optional |
| Surface | Silver, Black |
| Brake Type | Disk Brake |
| (Rear Derailleur) | up to 7 speed |
